Configuring Storage for CloudMonitor to schedule Exports (For CSP Customers Only)

This scribe is only for CSP customers which install Cloudmonitor in different tenants.

Tip

For CloudMonitor to receive cost data, the below is required of customers:

1. Create a new Storage Account Resource to serve as a container for cost data from the Azure Export API.

2. Assign the Storage Account Contributor Role to the CloudMonitor Service Principal.

Proceed for step-by-step instructions.

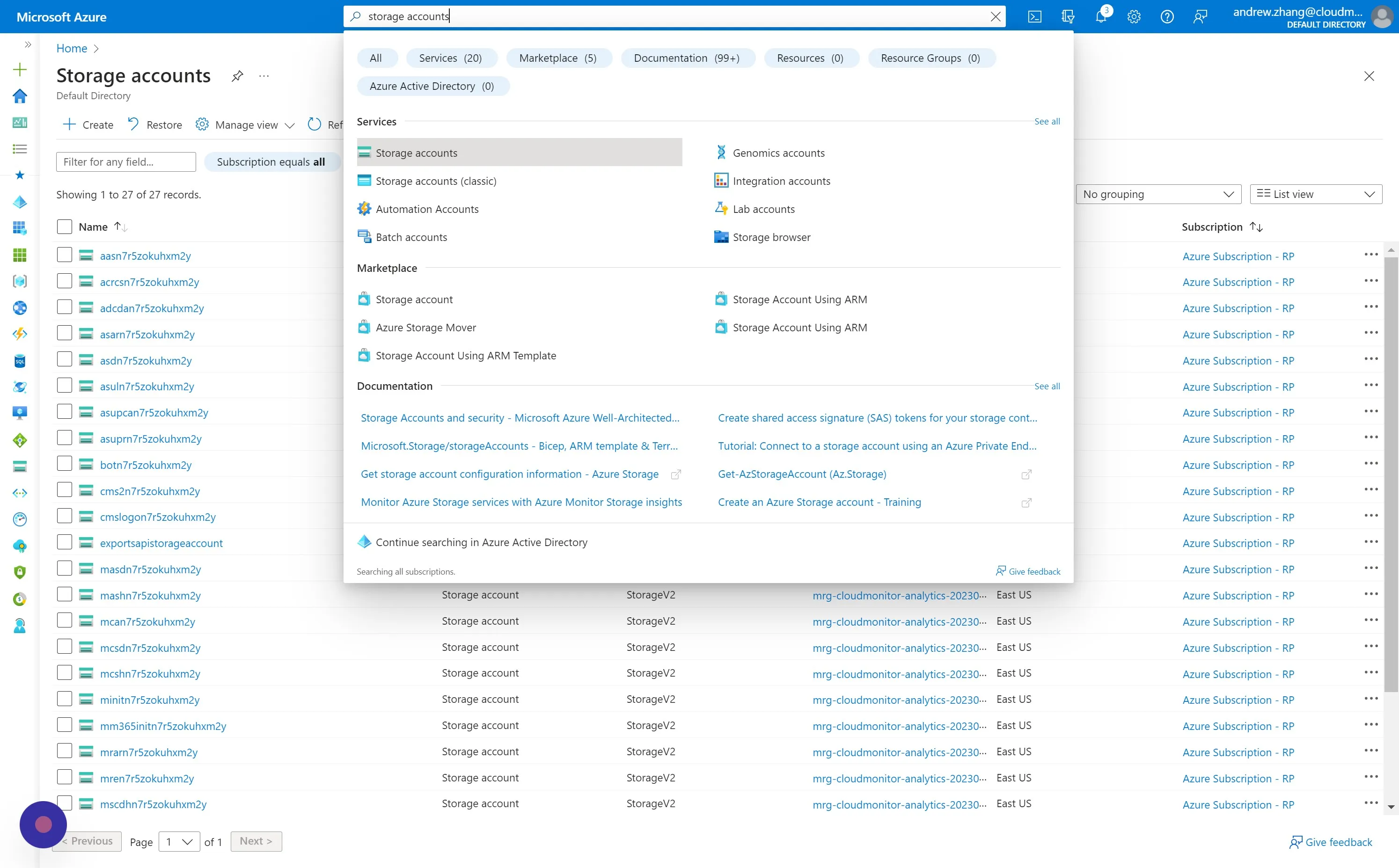

Step 1

In Azure Portal, navigate to the Storage accounts - Microsoft Azure and click “Create”.

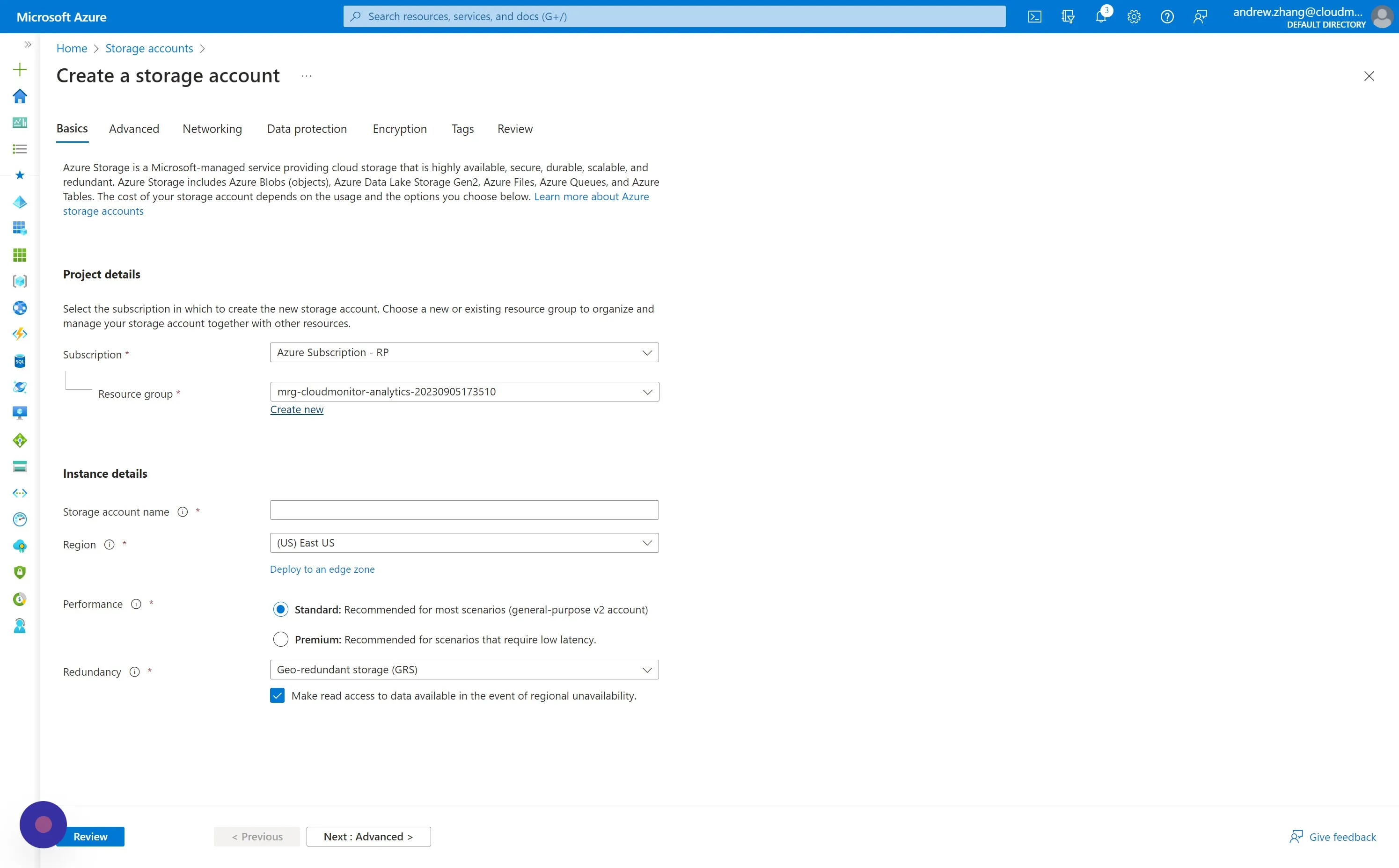

Step 2

Select a Resource Group in which to create the new Storage Account. We recommend setting up a new Resource Group.

If you are a NonCSP Customer, the chosen Subscription MUST be in the same Subscription as the CloudMonitor Engine.

If you are a CSP Customer, your Customer may choose any Subscription, the new Storage Account MUST be created in their tenancy.

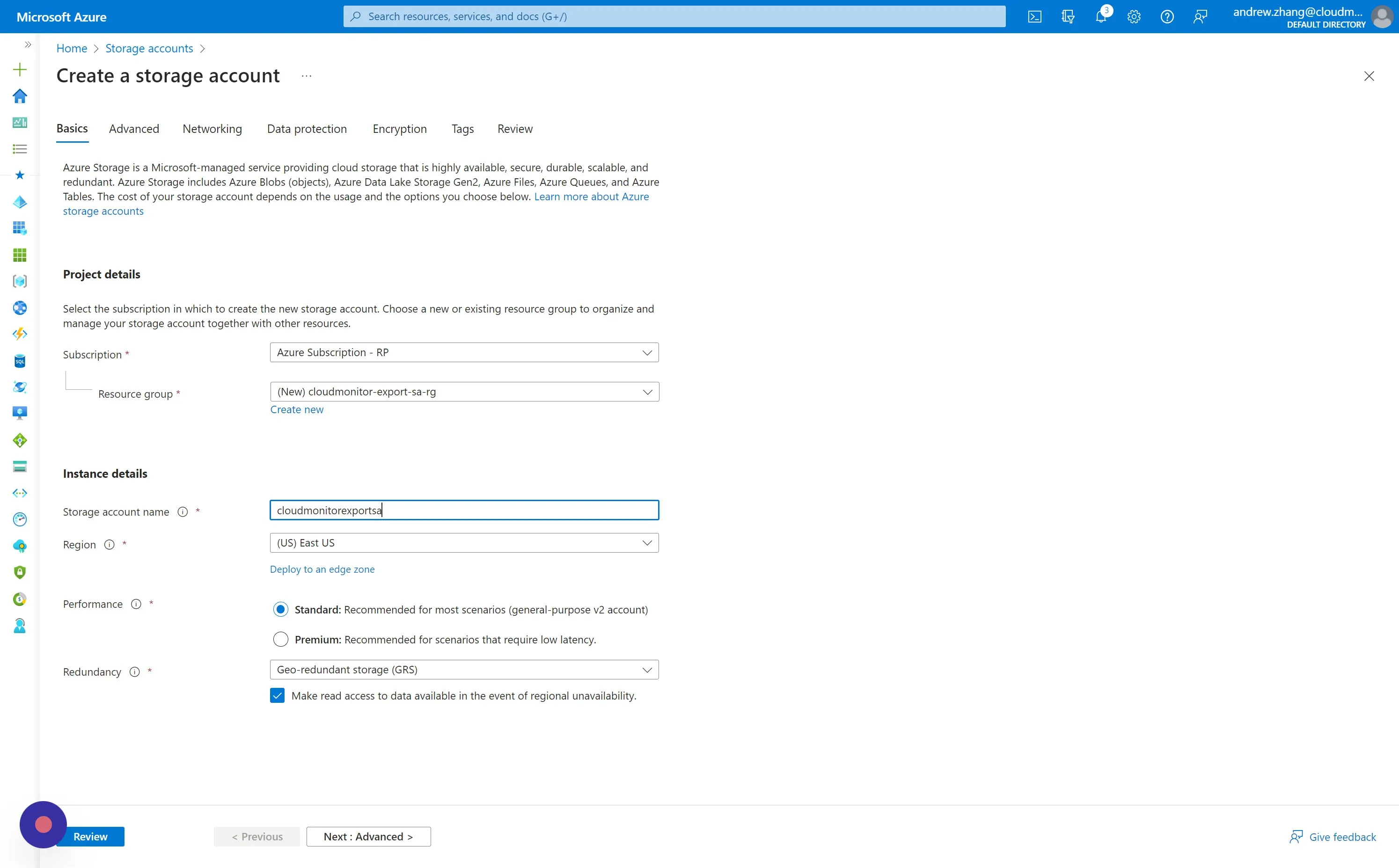

Step 3

Name the Storage Account in accordance with your existing organisational tagging standards and naming conventions.

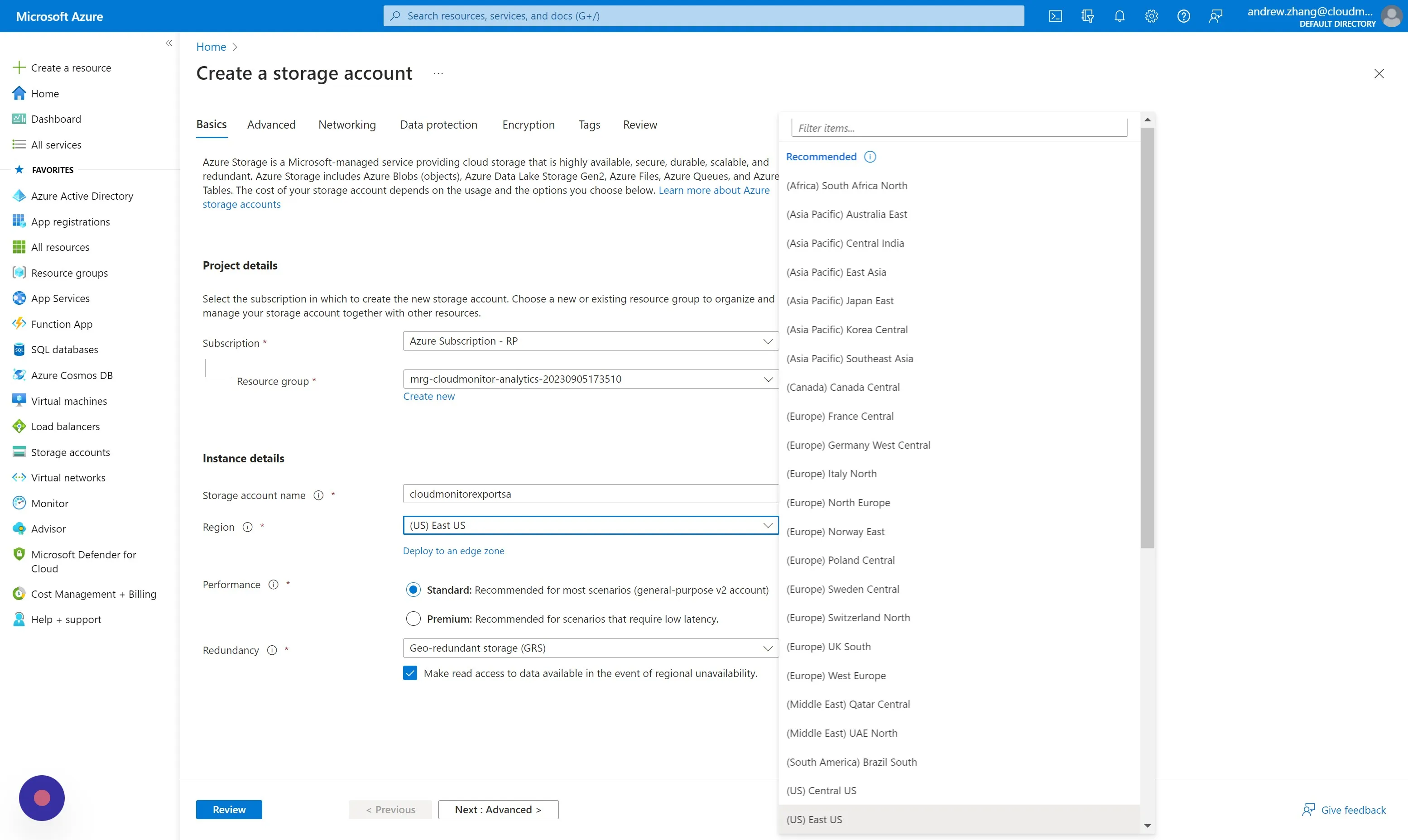

Step 4

To avoid paying egress fees select the same region that contains the CloudMonitor engine.

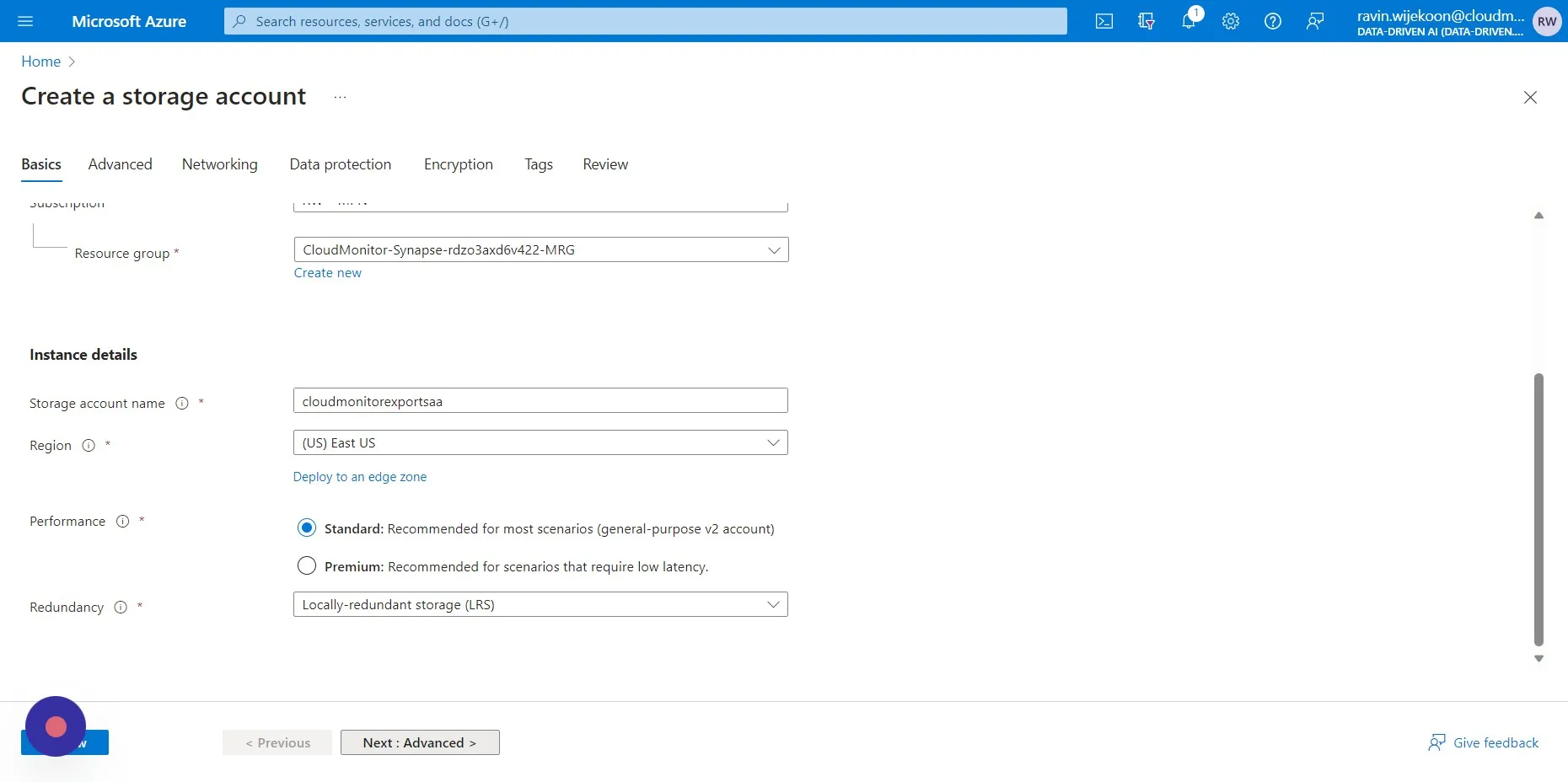

Step 5

Choose LRS for storage redundancy, then click “Advanced”.

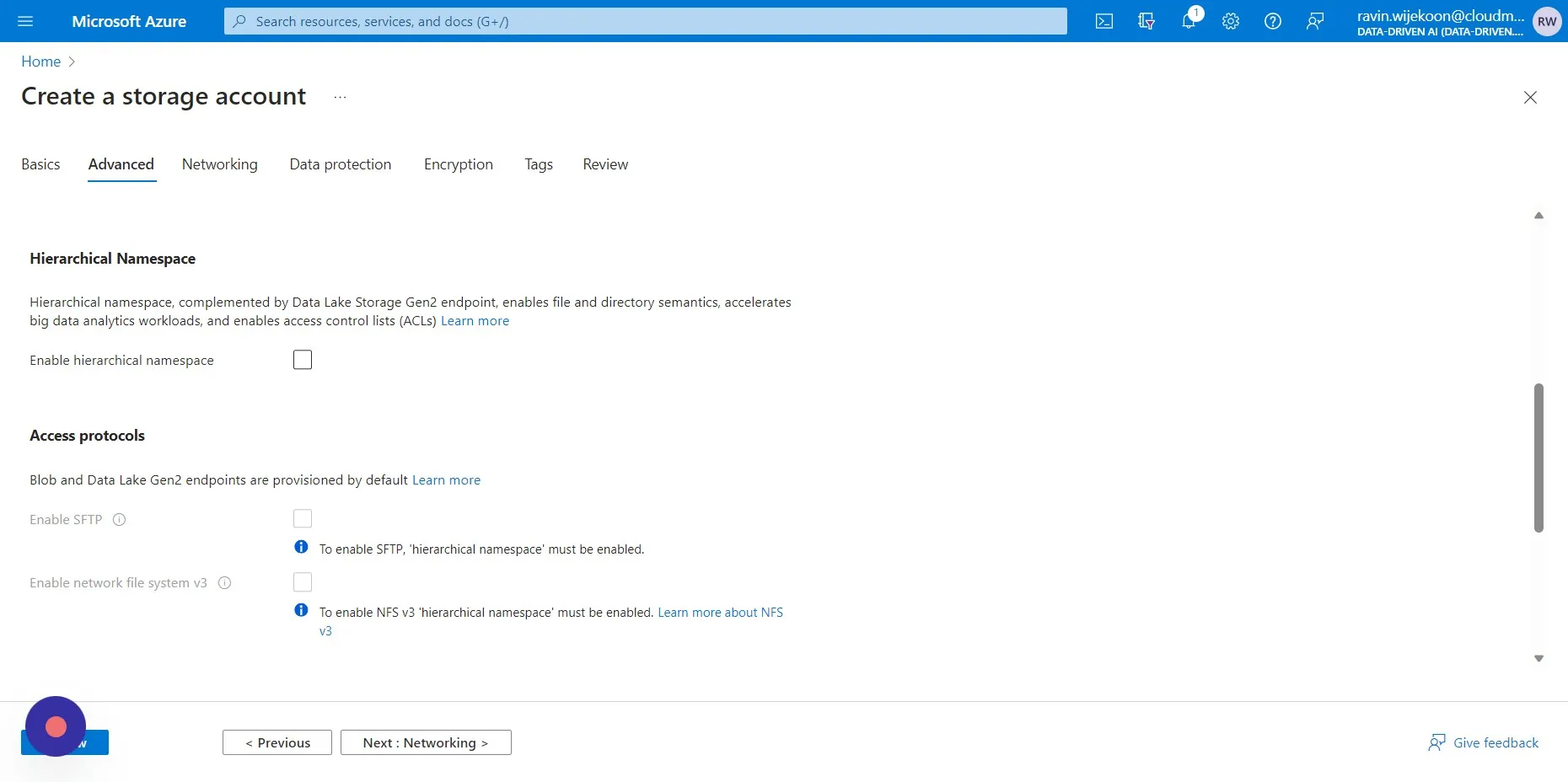

Step 6

Make sure Hierarchical Namespace is unticked. then click “Review” and “Create”.

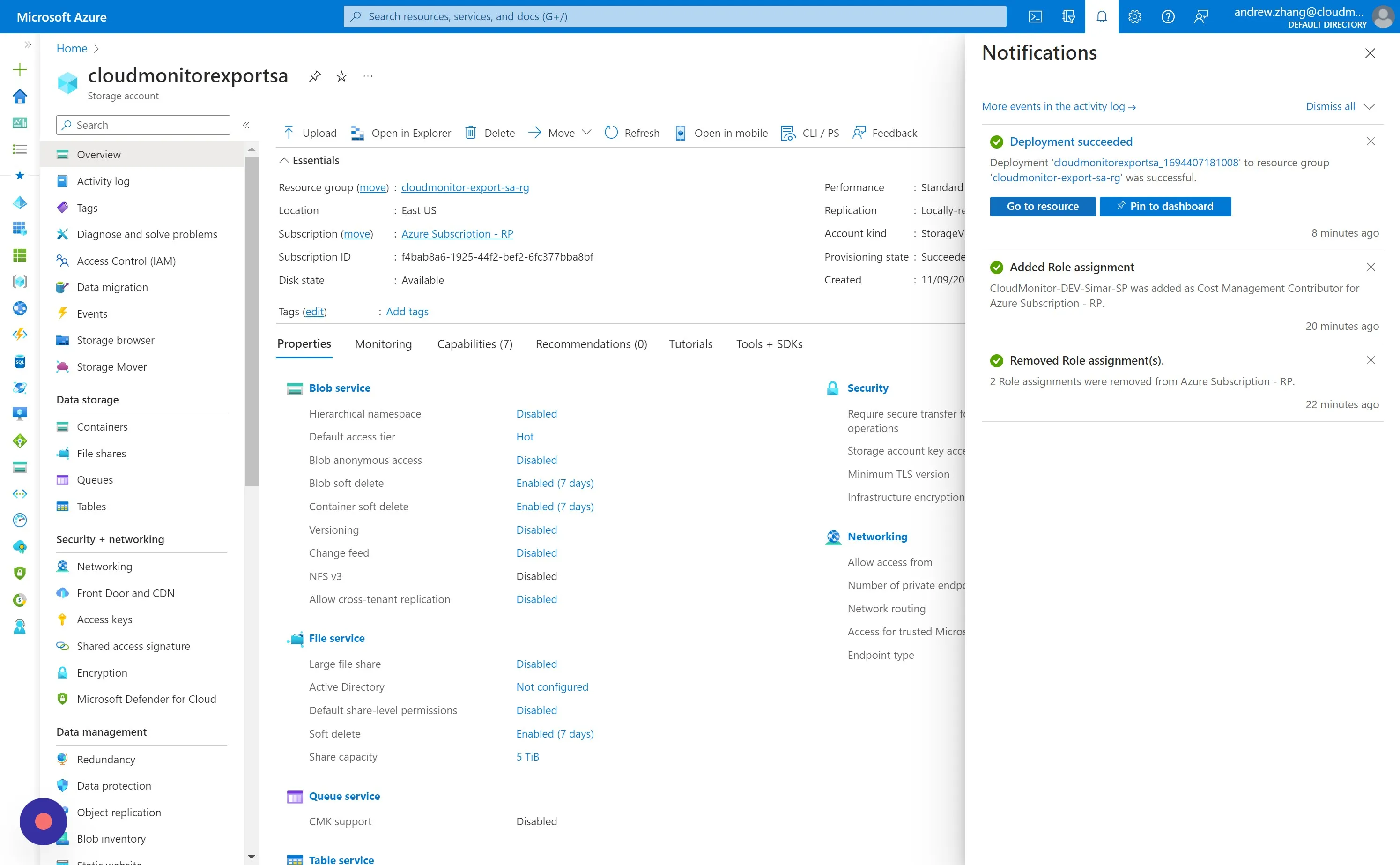

Step 7

You will receive a notification for when the Storage Account has been successfully deployed. Click “Go to resource” in preparation for the next section.

Tip

Before proceeding to the next set of instructions, we require that the new Storage Account’s Subscription is registered with the Microsoft.CostManagementExports Azure Resource Provider.

This is necessary to use the Export API, without this, CloudMonitor cannot perform cost export operations on the Storage Account in that Subscription.

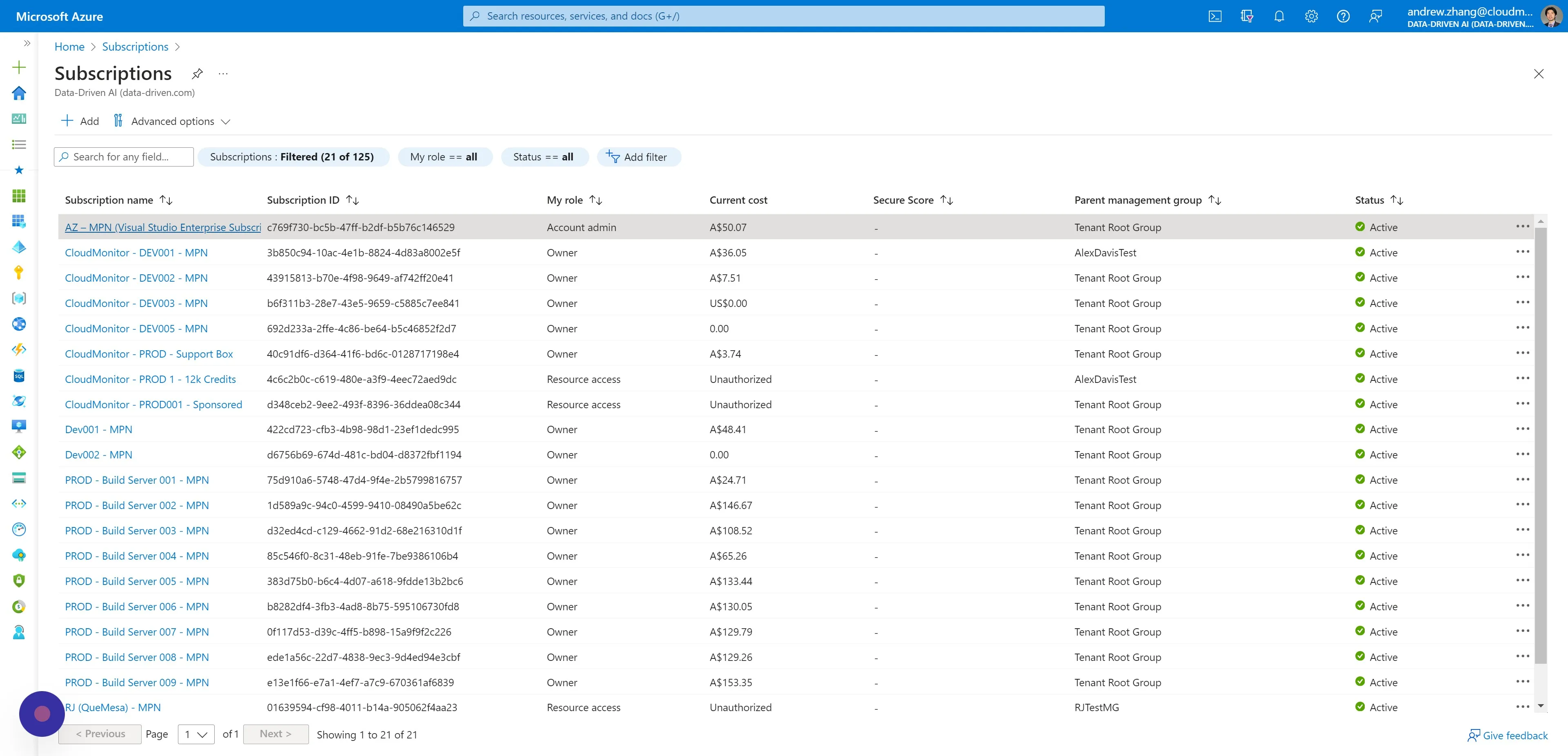

Step 8

Navigate to Subscriptions - Microsoft Azure and select the same Subscription the Storage Account will be located in.

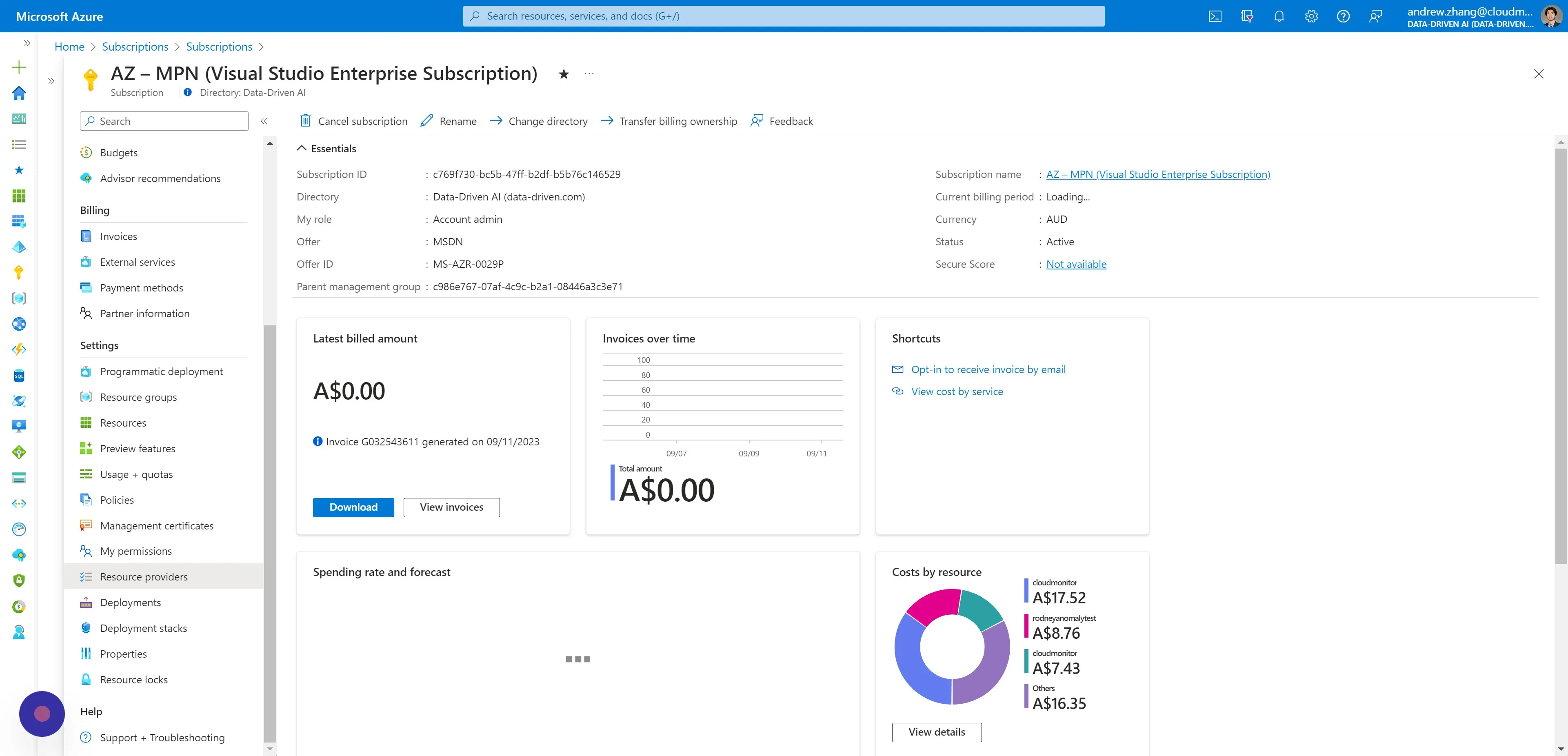

Step 9

Click “Resource providers”.

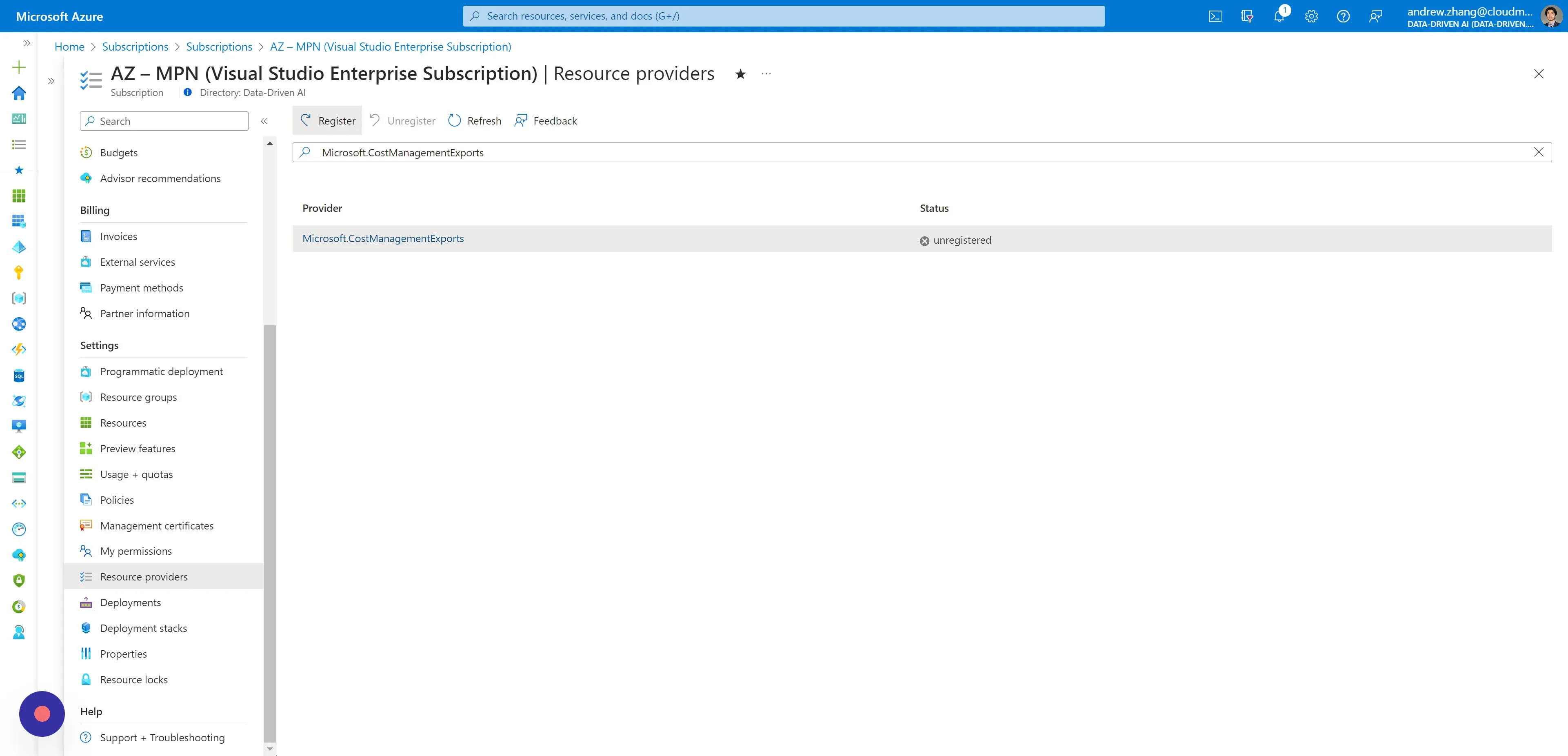

Step 10

Filter by and select “Microsoft.CostManagementExports” and then click “Register”.

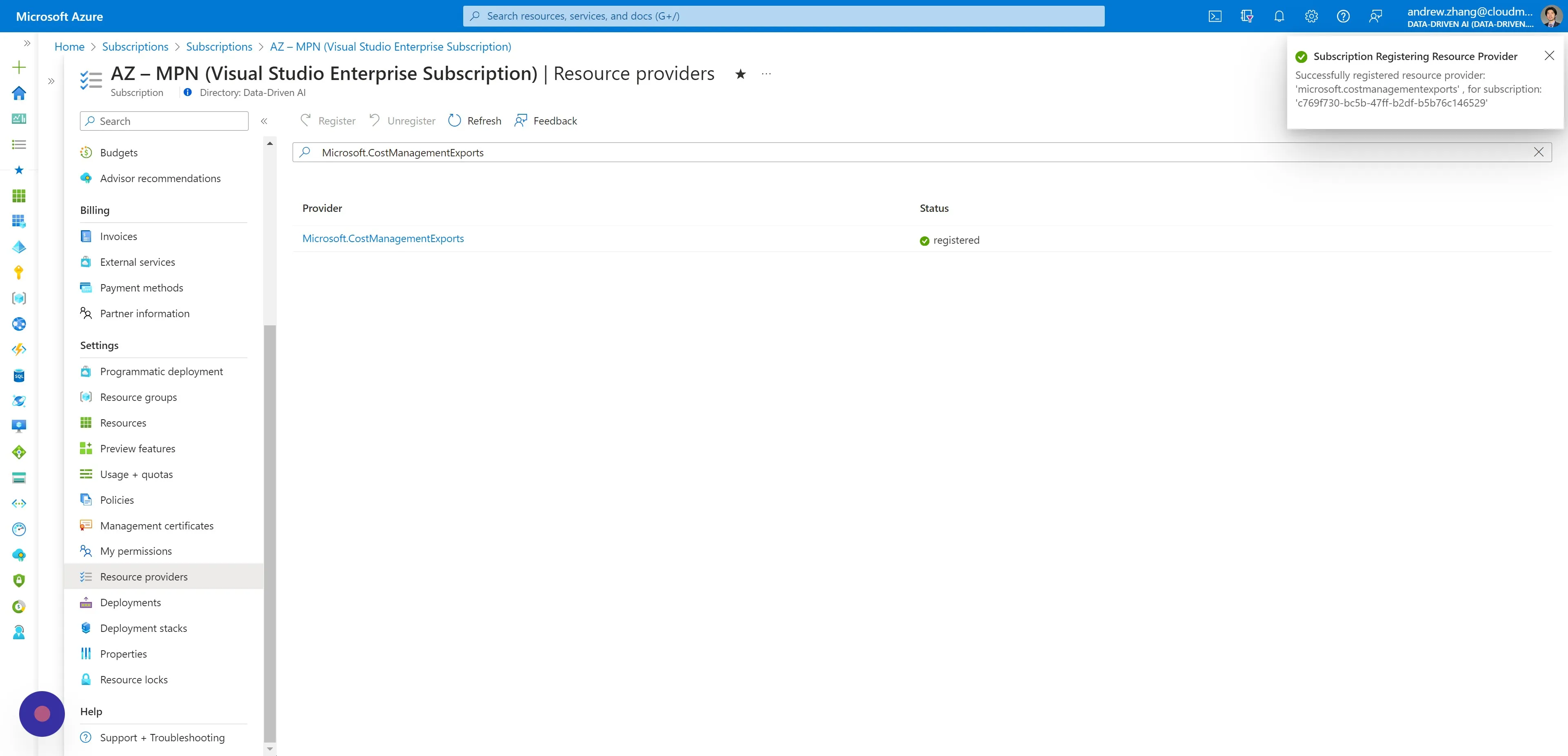

Step 11

You will receive a notification for successfully registering the Resource Provider.

Tip

The next steps will cover how to assign the Storage Account Contributor Role to the CloudMonitor Service Principal.

Reason: These roles are needed to create scheduled exports with the Azure Export API.

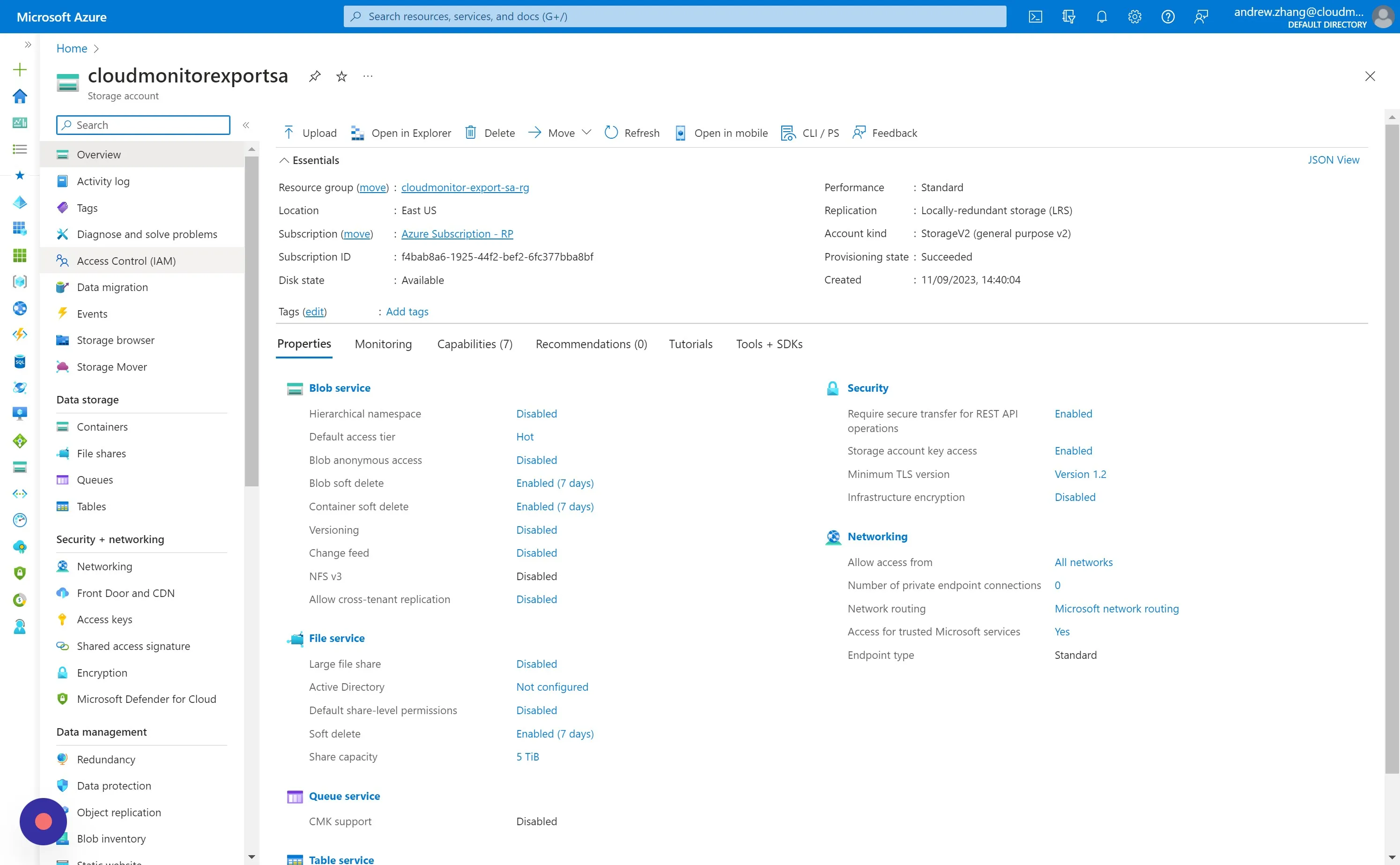

Step 12

Navigate to the Storage Account Resource we just created.

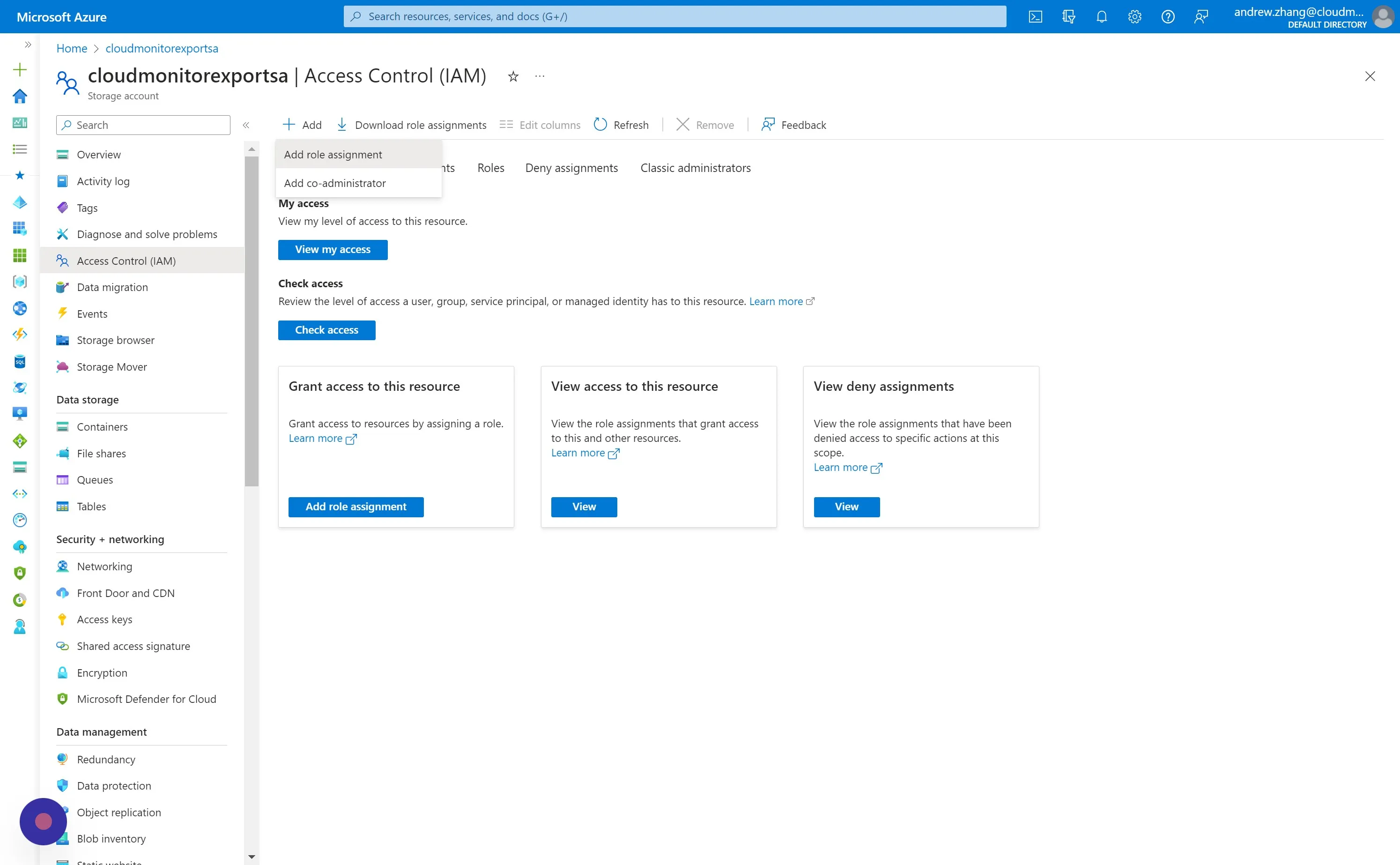

Step 13

Navigate to Access Control (IAM) and click “Add > Add role assignment”.

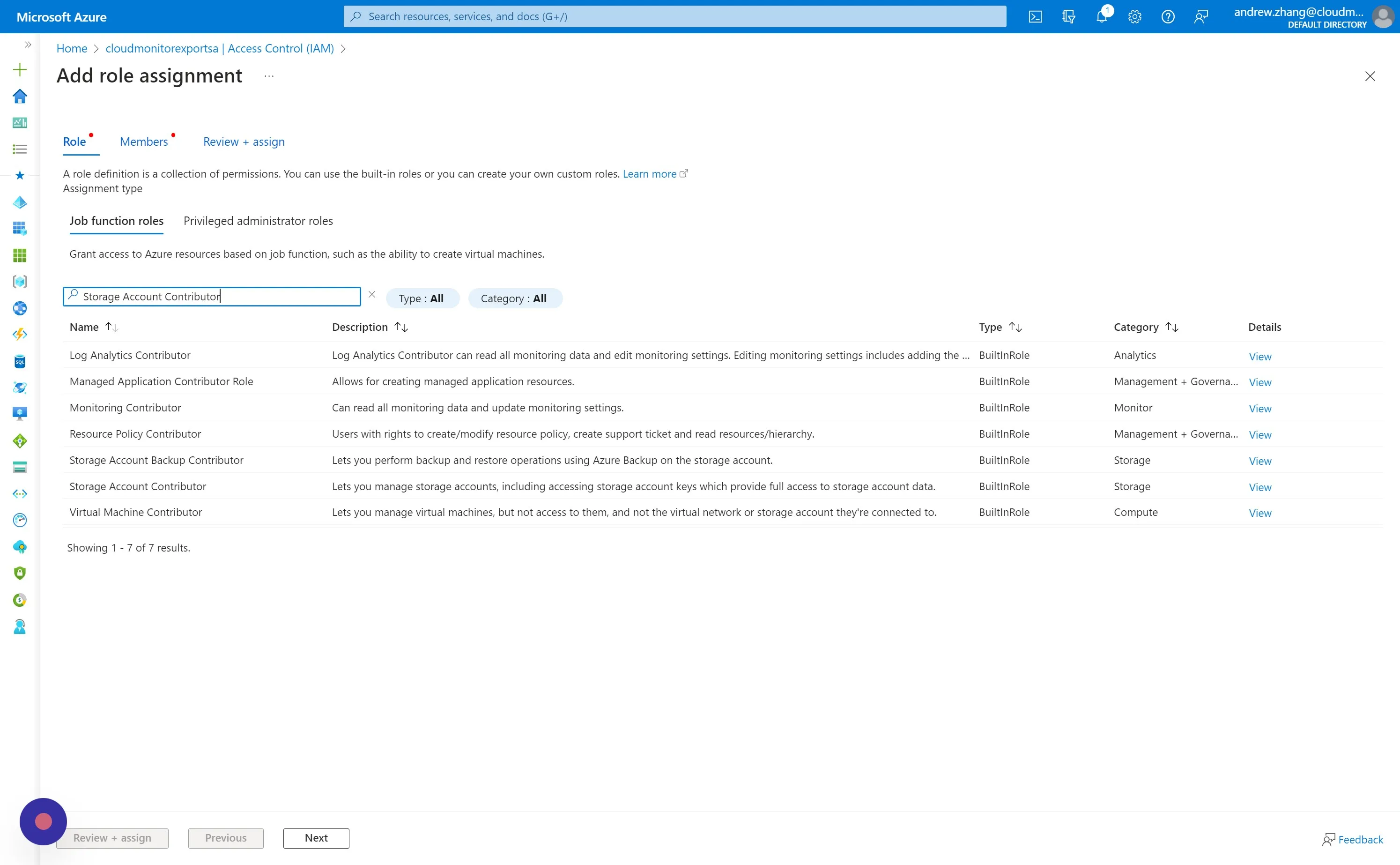

Step 14

Under the Role tab, select “Storage Account Contributor” as the Role.

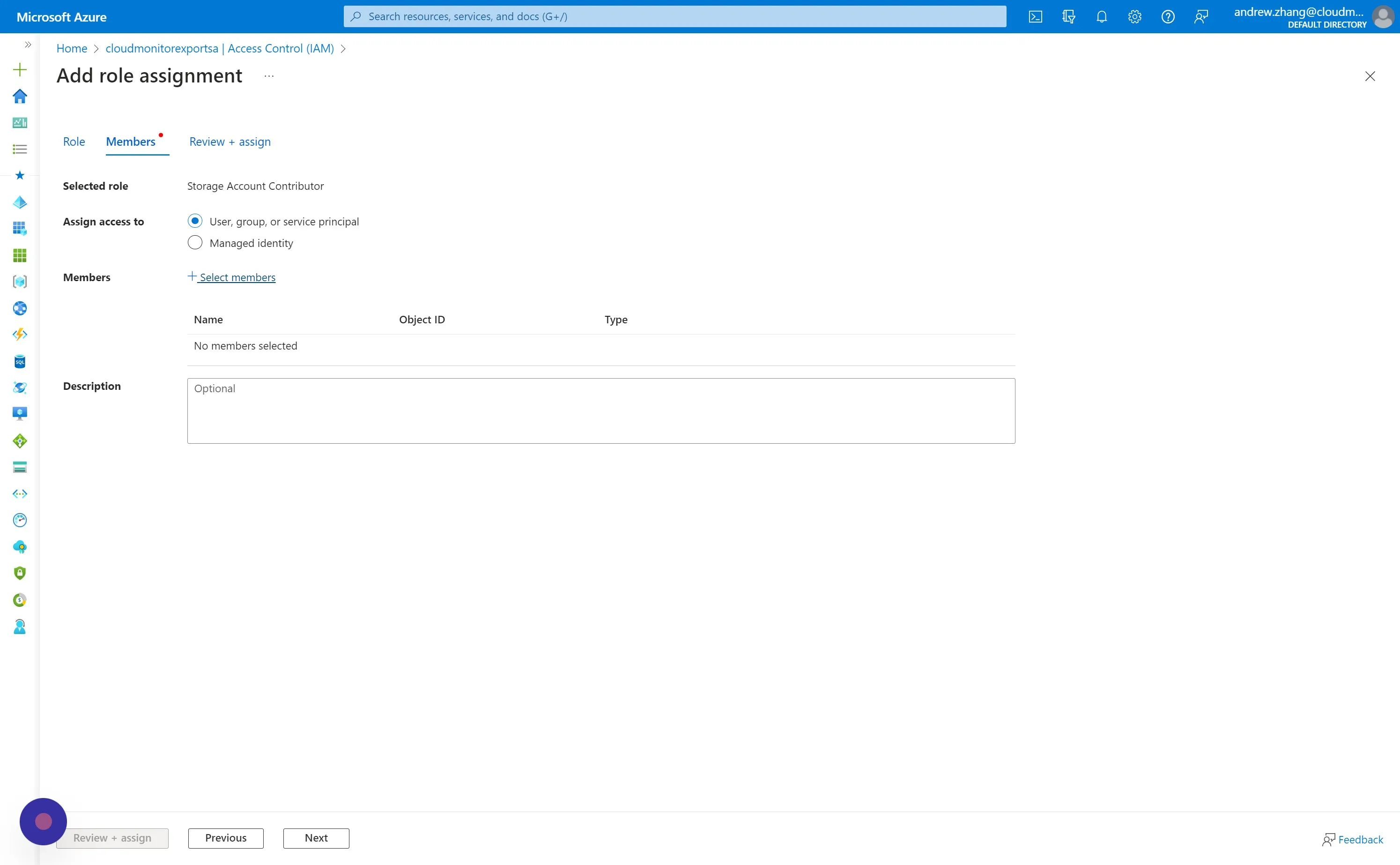

Step 15

Switch to the Members tab, and click “Select members”.

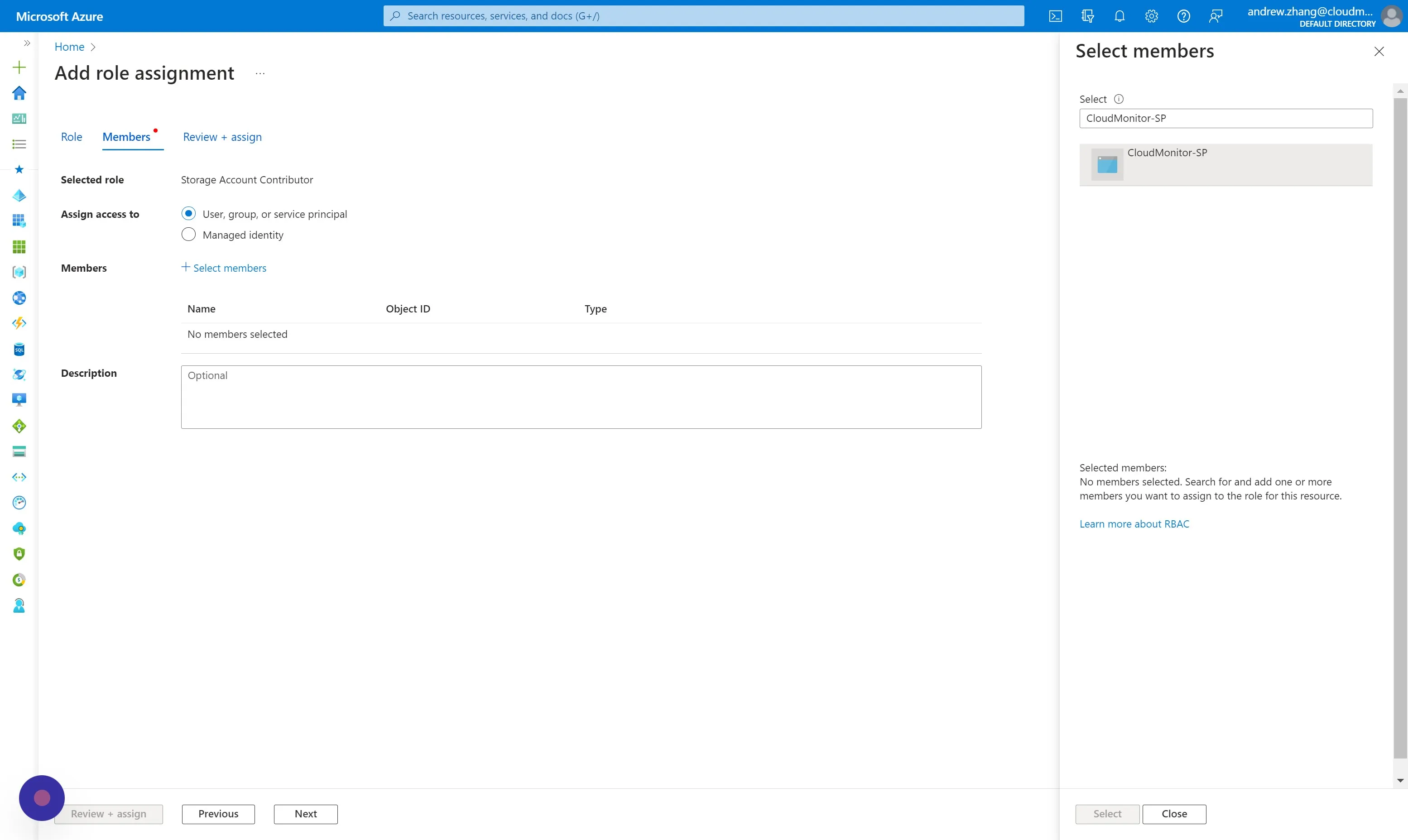

Step 16

Search and select your CloudMonitor Service Principal name.

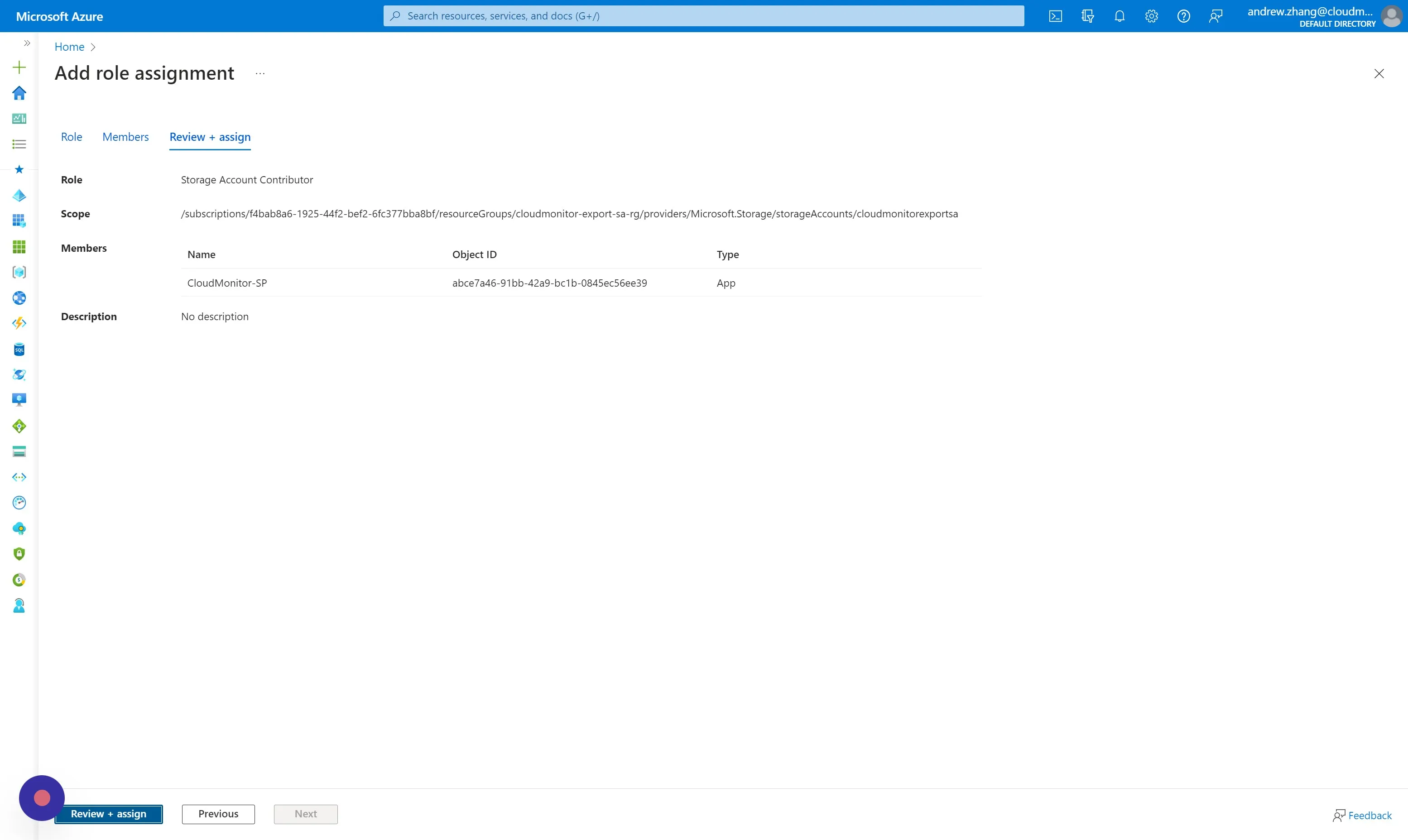

Step 17

Switch to the Review + assign tab and “Review + assign”.

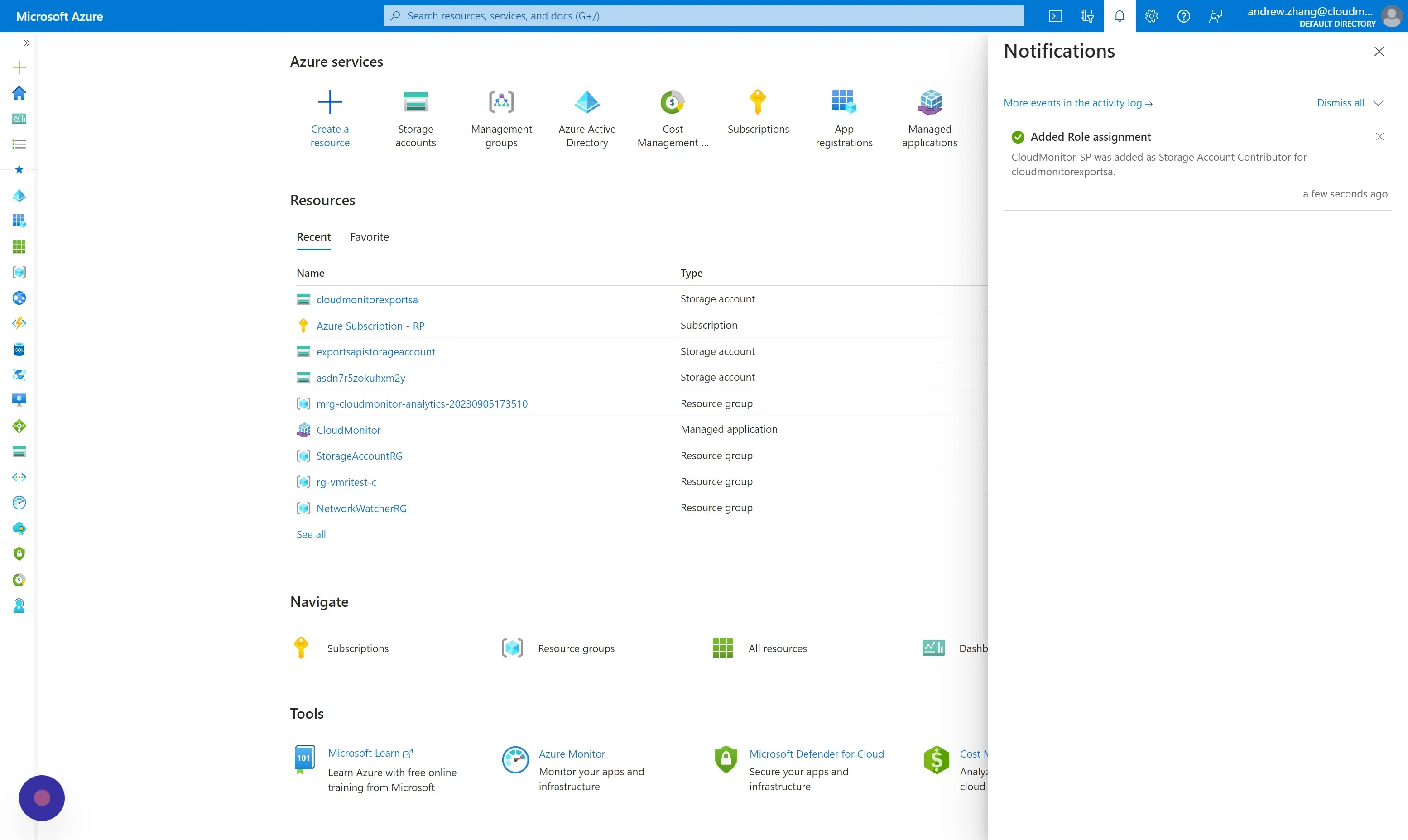

Step 18

You will receive a notification for successfully assigning the “Storage Account Contributor” role.

Tip

Next step is to verify whether “Permitted Scope for Copy Operation” is correct.

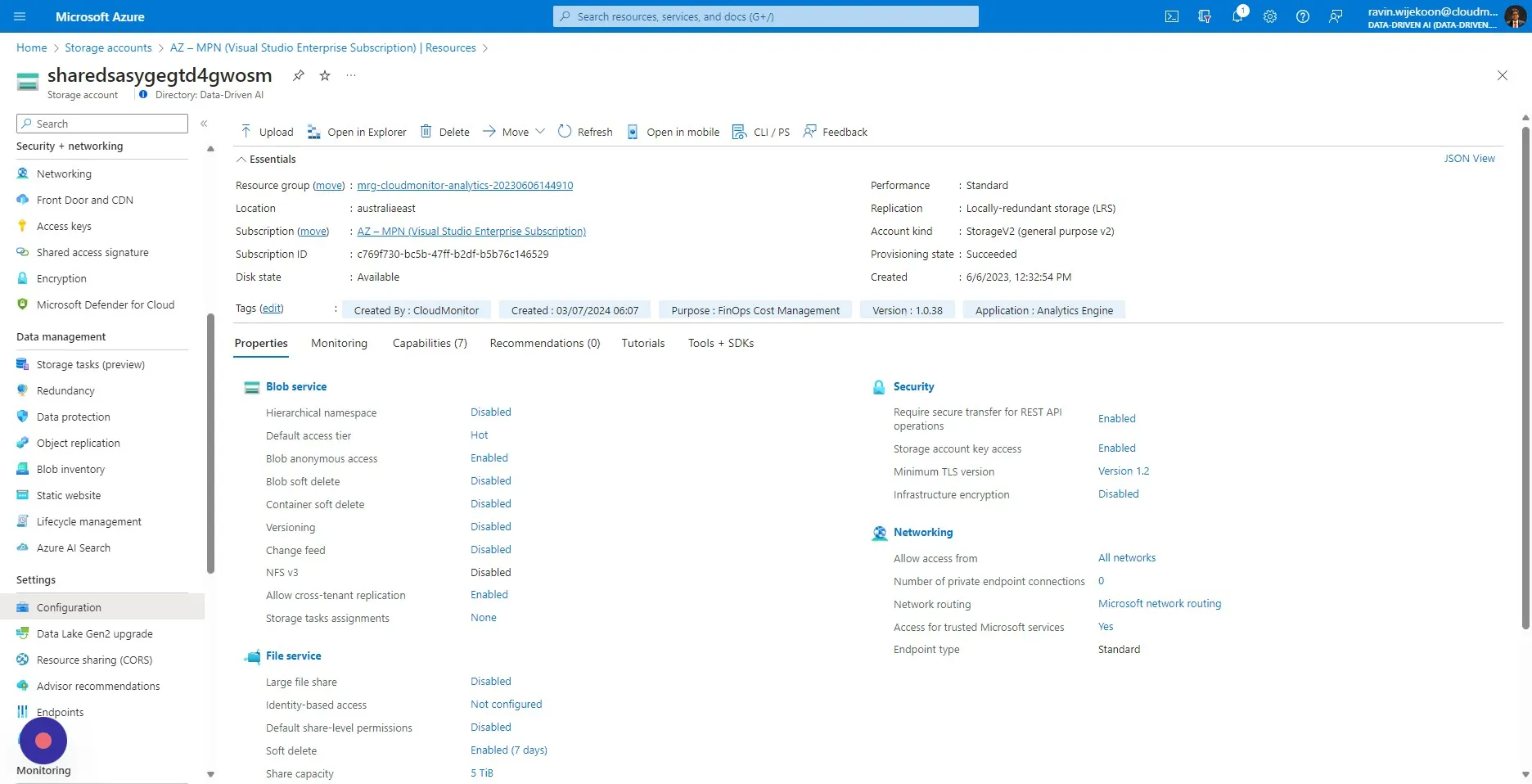

Step 19

Navigate to the Storage Account and Click “Configuration”

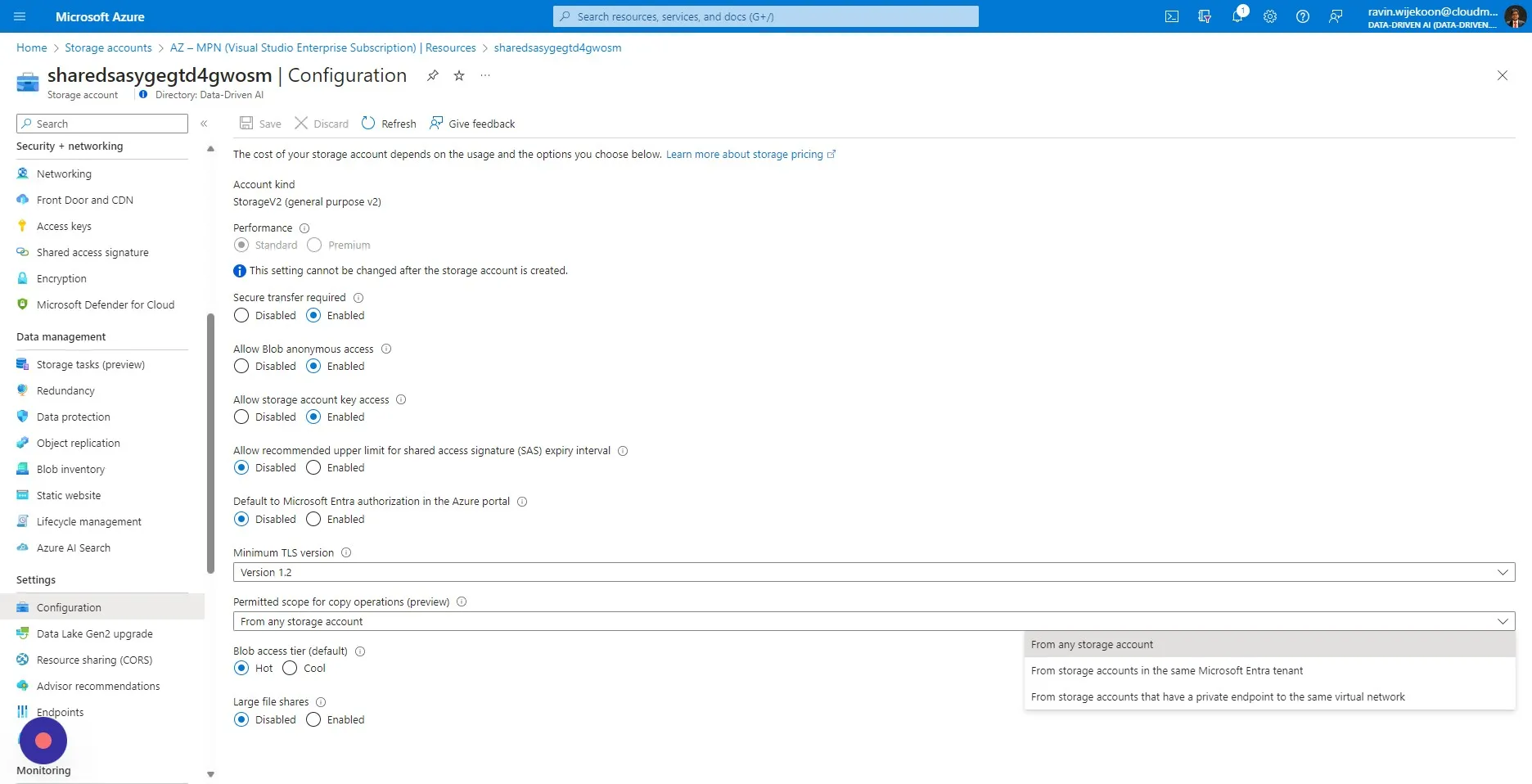

Step 20

Expand the drop down of “Permitted Scope for Copy Operation” and Click “From any storage account”

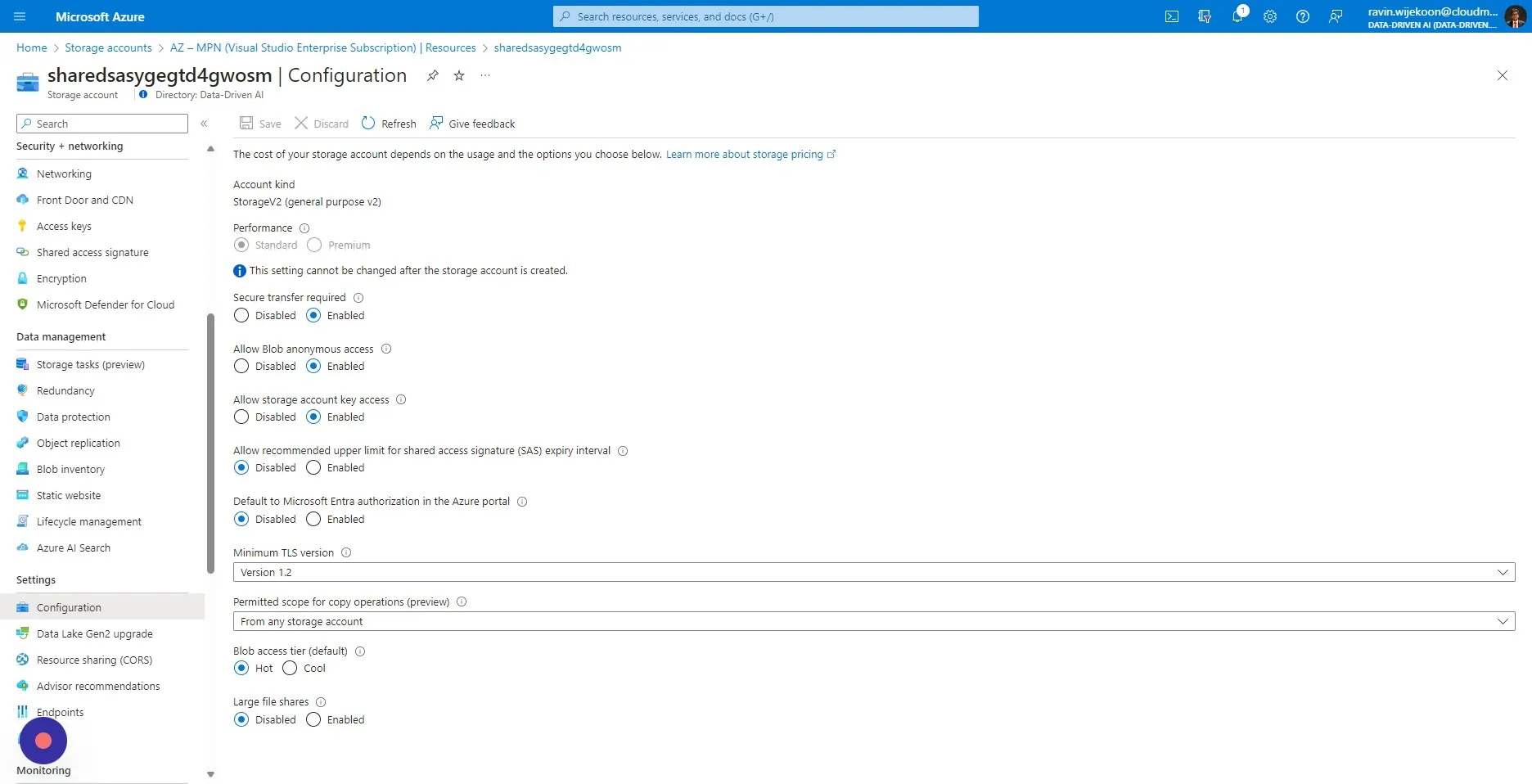

Step 21

Click “Save”.

Tip

The next steps will cover the last task — creating a SAS Connection String for the Storage Account.

Reason: Required to grant CloudMonitor secure and limited access to resources in the storage account without exposing the access key.

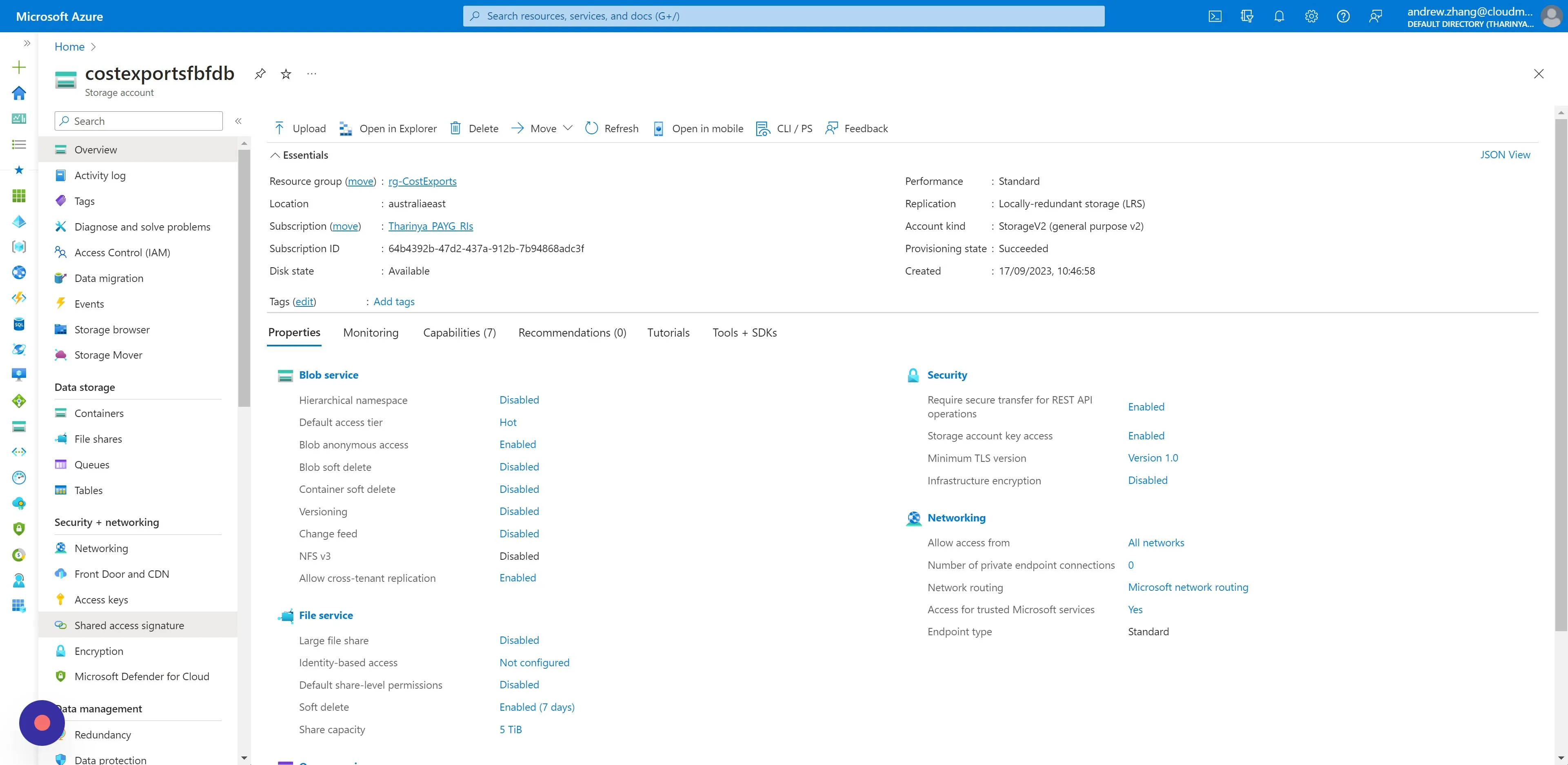

Step 22

On the same Storage Account Resource, click “Shared access signature”.

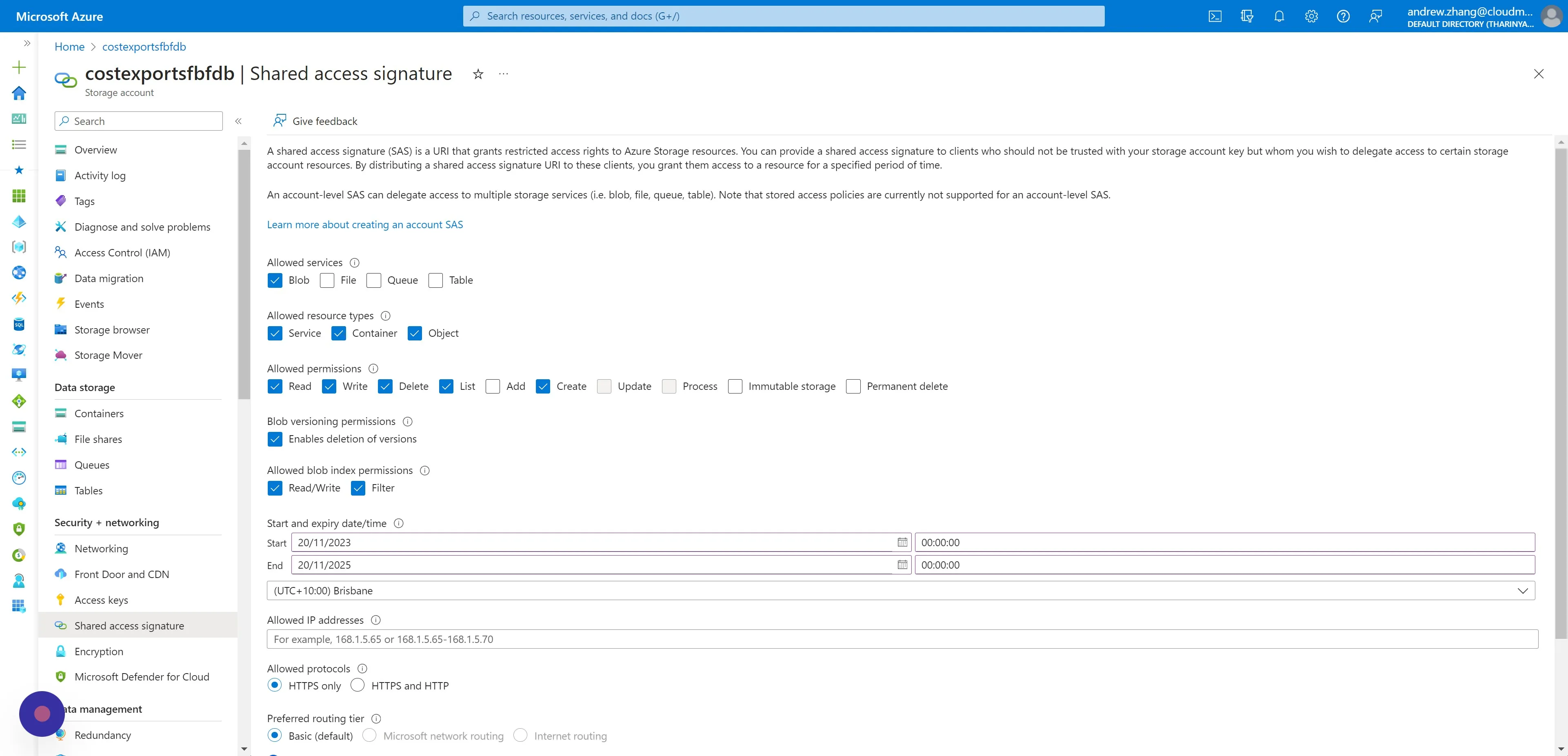

Step 23

To ensure secure and minimal access configure the SAS with the following settings:

1. Under Allowed Services, check ‘Blob’ to restrict access to Blob storage only.
2. For Allowed Resource Types, select ‘Service’, ‘Container’ and ‘Object’ to permit operations at the service, container and blob level.
3. Choose Allowed Permissions ‘Read’, ‘Write’, ‘Delete’, ‘List’, and ‘Create’ to exclusively manage blob content within the container.
4. Do not enable any other services or permissions not specified here.

Apply these settings to provide CloudMonitor with the necessary permissions to manage blobs without overextending access rights.

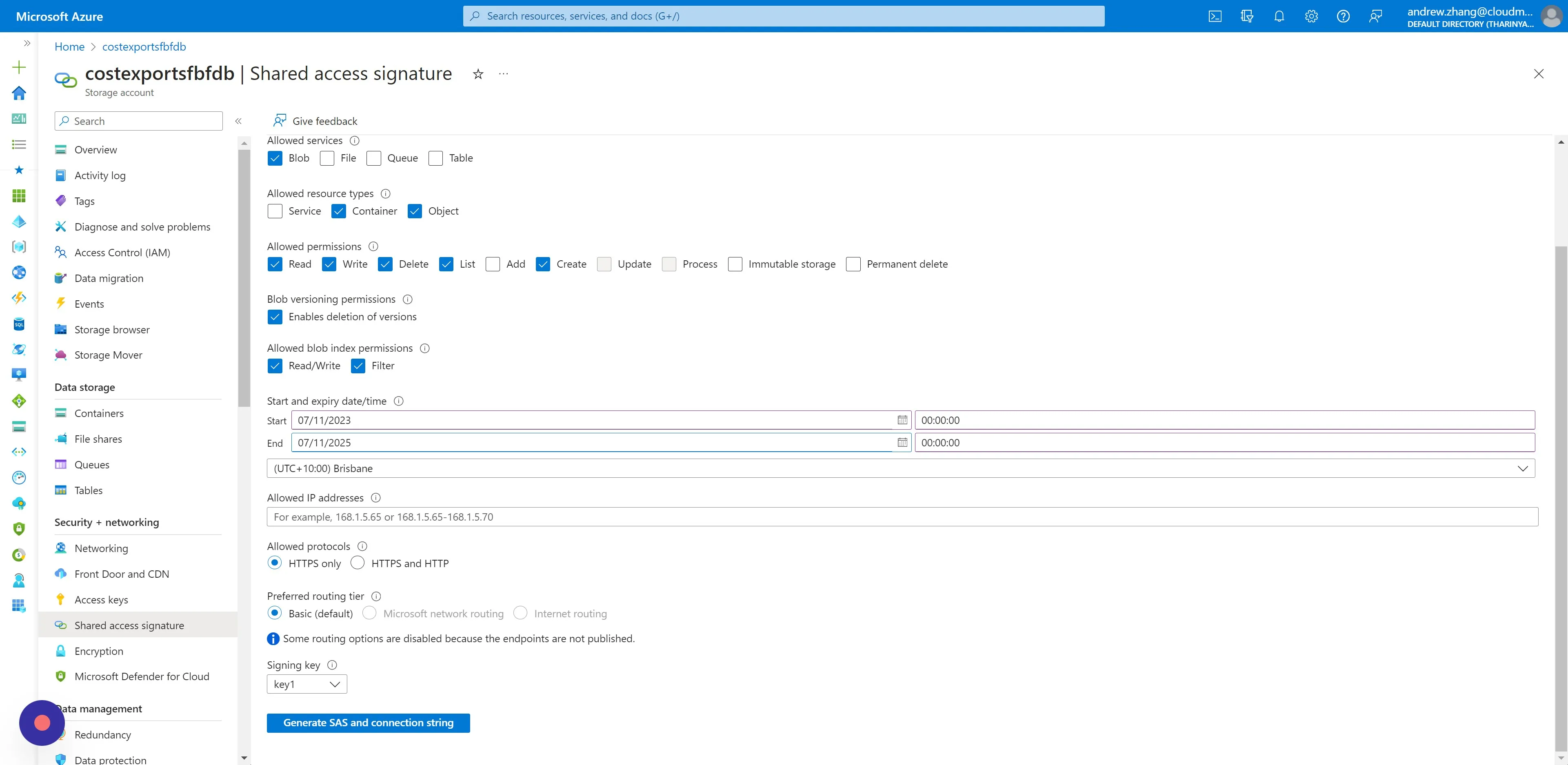

Step 24

When setting the SAS expiration, it’s advised to choose a date two years from today to ensure continued access without frequent renewal.

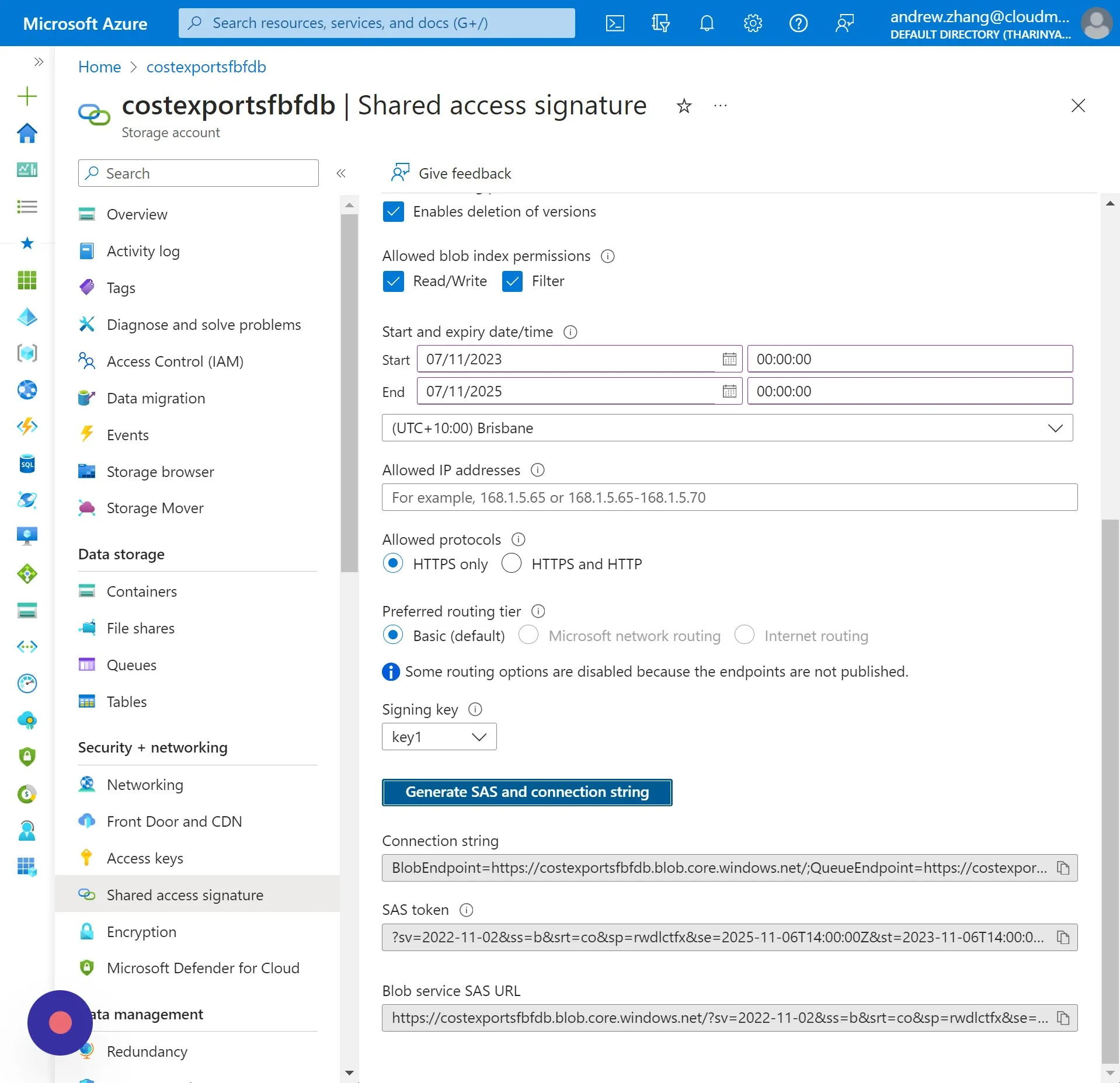

Step 25

Click “Generate SAS and connection string”

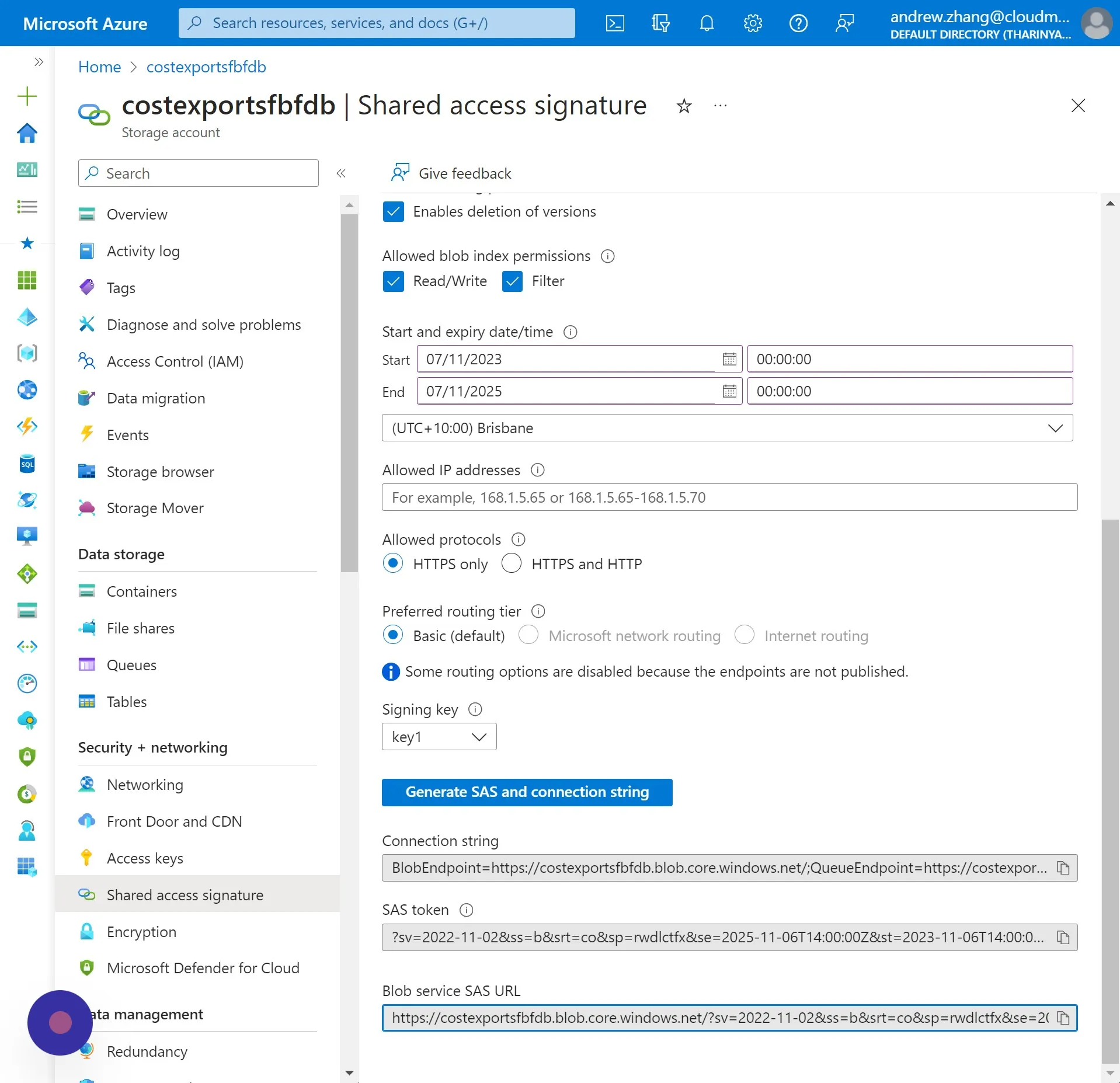

Step 26

1. Find the Blob Service SAS URL located at the bottom of the page. Copy this URL and store it securely.
2. Also, copy the URL of this webpage. It contains the Storage Account Resource ID.
3. Finally, email the copied information to support@cloudmonitor.ai and confirm that you have completed this Helpdesk Article.

Danger

Next Step: Step 4: Raise a Support Ticket : CloudMonitor Helpdesk
